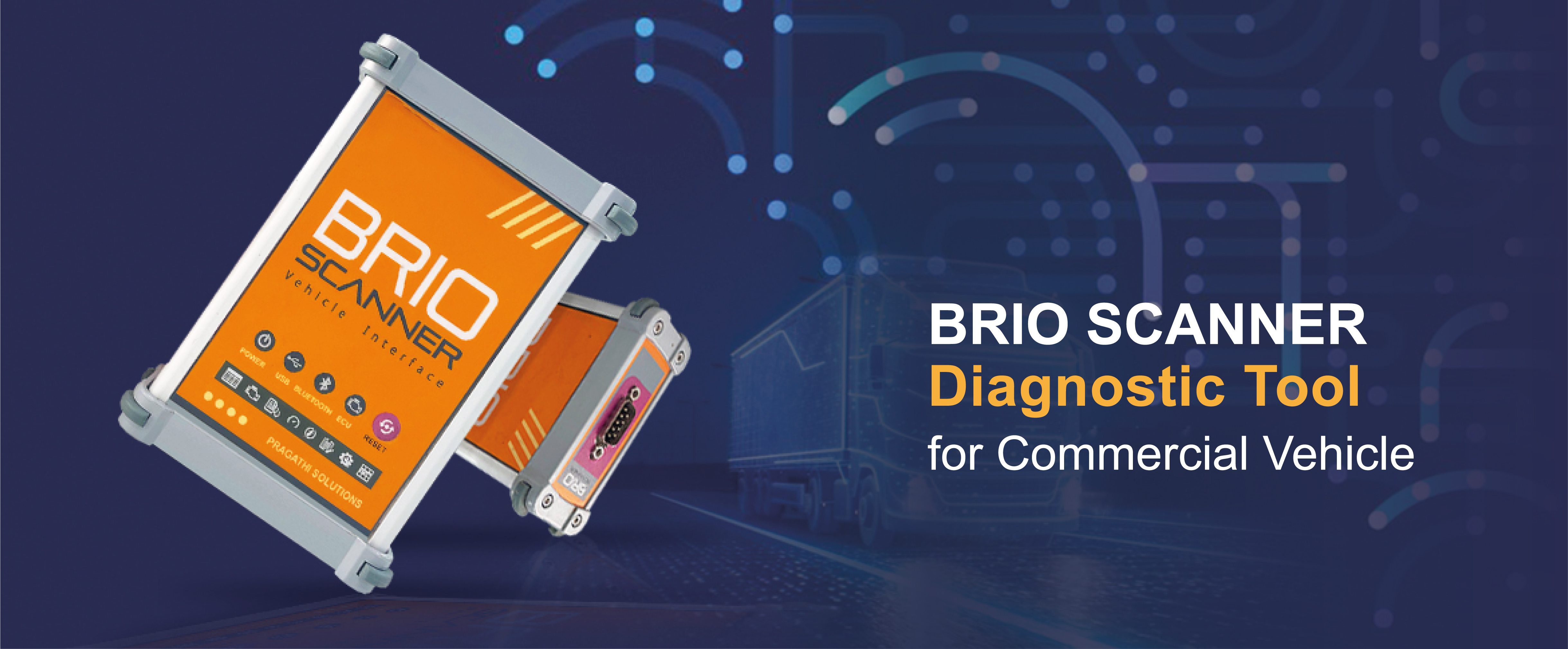

BRIO SCANNER
Diagnostics Tool for Commercial Vehicle
Core Features
- PC / Laptop interfaced Flashing Tool
- Online flashing mode
- Multiple Protocols & Automatic Protocol selection
- Inbuilt Power supply, no external charging required
- Complete diagnostic solutions enabled
- DTC’s with Cause & Remedial action
- Adjust required parameters
- 2D / 3D Scanner Configuration supported
- Database Management System (DBMS) enabled
- Online firmware updation
- VCI connect to Laptop / Tablet via USB / Bluetooth
BRIO Scanner
- Size W x H x D - 90 x 130 x 40 mm.
- Weight - 280 Gram (Approx)
- Body Color - Orange & Grey
- PC Sync - USB Port (3.0)
- Version - 12.0.1
- Language - English
- Product Type - Compact
- User Manual
Software Features
- Software Selectable options for ECU’s
- Online update of Firmware
- Automatic Protocol (CAN / KWP) Selection
- ECU Dataset flashing
- Vehicle Diagnostics – Actual Parameter, DTC’s,
Adjust parameters, Test Actuators, Freeze frame.
- VIN Writing & Reading option enabled
- 2D / 3D Scanner integration
- Barcode & Label Printer integration
- Multiple ECU variants can be merged in the same VCI
- Runtime Data logging
- Runtime Data logging
Hardware features
Laptop / Tablet based Diagnostics Tool
External Communication via K – Line / CAN
CAN Communication via J1939 Protocol / UDS
Power supply range 08 Volt – 32 Volt
32 Bit, 120 MHz ARM Cortex Series Processer
Memory 4GB inbuilt
Expandable memory upto 32GB
In built 09 volt Power Supply
J1962M to DB9F, OBD II Cable
Uploading the data to PC via USB 3.0
EMI/ EMC protection enabled
