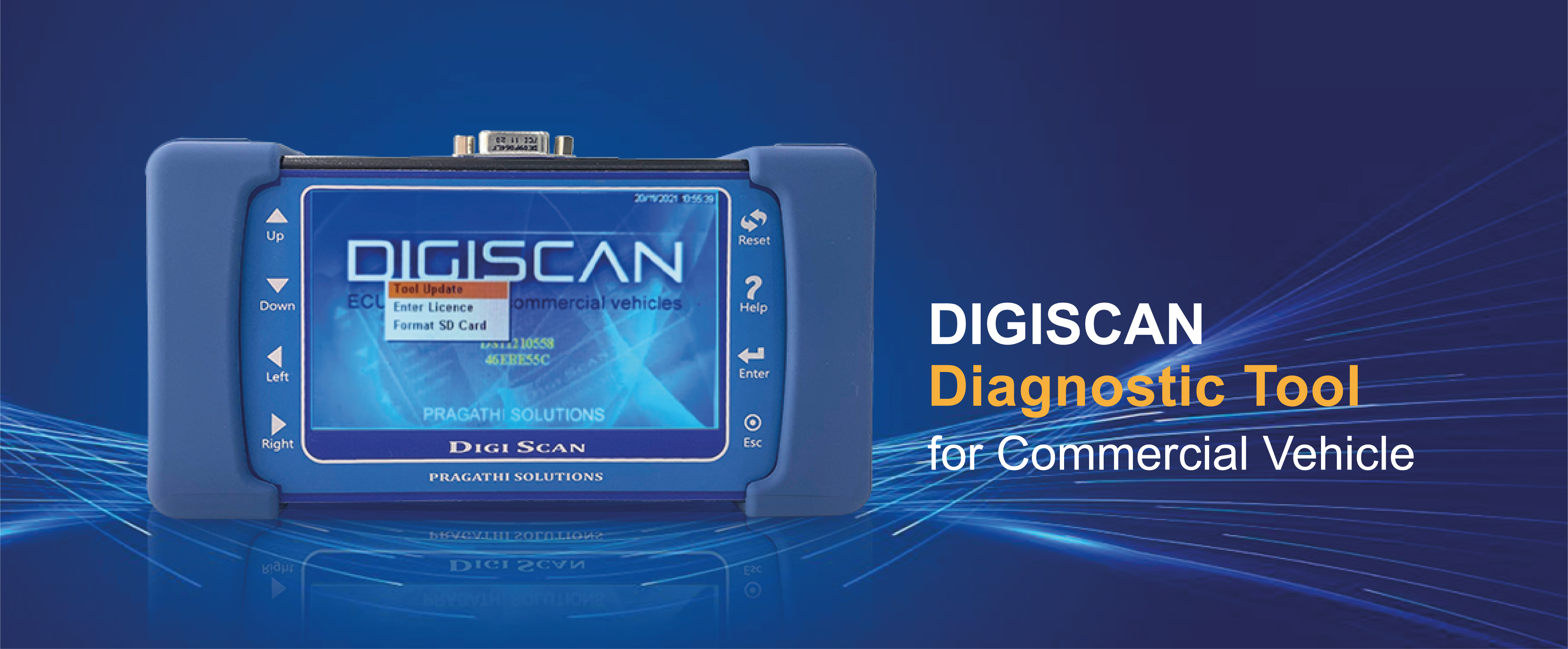

DIGISCAN

ECU Scanner for Commercial Vehicle

Core Features

  • Handheld with user friendly Firmware
  • Supports EOL Flashing & Diagnostics
  • Communicates with multiple ECU’s
  • Multiple Protocols & Automatic Protocol selection
  • Inbuilt Power supply, no external charging required
  • 4.3” TFT display
  • Multiple parameters visibility
  • Dataset stored in the memory in encrypted format
  • Data Logging enabled
  • DTC’s with Cause & Remedial action
  • Adjust required parameters
  • Online firmware updation
  • Offline GUI Software for Logged data analysis
DIGISCAN ECU Scanner for Commerical Vehicle

Specification

  • Size W x H x D - 90 x 175 x 40 mm.
  • Weight - 360 Gram (Approx)
  • Body Color - Black & Navy Blue
  • PC Sync - USB Port (3.0)
  • Version - Digi : 02.09
  • Language - English
  • TFT Display 4.3” Mode - Color 32 bit
  • Keypad - Soft touch pad
  • Product Type - Compact
  • User Manual Language - English

Hardware Features

  • Handheld Scanner
  • External Communication via K – Line / CAN
  • CAN Communication via J1939 Protocol / UDS/ KWP on CAN
  • Power supply range 08 Volt – 32 Volt
  • 32 Bit, 120 MHz ARM Cortex Series Processer
  • Memory 2GB internal
  • Memory 4 to 32 GB external
  • Online Data Logger
  • In built 09 volt linear Power Supply
  • TFT 4.3“ Display
  • Touch pad
  • J1962M to DB9F, OBD Cable
  • Uploading the data to PC via USB 3.0
  • EMI/ EMC protection comply

Package Contains

  • DIGI SCAN Diagnostics Scanner
  • J1962M to DB9F, OBD II Cable
  • USB Cable 2.0
  • Software CD contains GUI S/w
  • User’s Manual
  • Carrying Pouch

Software features

  • Software Selectable options for ECU’s
  • Continental, Magneti Mareli etc.. ECU modules
  • Automatic Protocol (CAN / KWP) Selection
  • Display Real Time data
  • Adjust ECU Parameters
  • Set Vehicle Speed
  • Write Injector Code (IMA)
  • Test Actuator
  • Read & Erase Diagnostic Trouble Codes (DTC’s)
  • Environmental Condition
  • Freeze Frame Data
  • Read & Write Vehicle Identification Number ( VIN )
  • Password Protection for user selectable parameters
  • ECU Flashing option enabled
  • Online update of Firmware & Dataset
  • Online EOL Dataset Flashing
  • Dataset saved at the DigiScan in encrypted format
